holepattern
Wheel Slip Guide
"Careful management of ballast and tire inflation pressure can maximize tractive efficiency, minimize compaction, increase tractor drivetrain life and increase profitability." (Read PDF)
freeshipping
Click for the BBB Business Review of this Tractor Equipment & Parts in Wichita Falls TX

Tractor Weight Brackets

Tractor weight brackets and weight carriers for most major brands.  Skid steer brackets also available.


LS 2H PIN SET

Pin Set for John Deere Weight Brackets
…219
JD Style Pin Set

Ref L169060
Ref L12491
Replaces: John Deere L169060 & L12491

ON SALE NOW!

hardware sold separately

LS 500

Tractor Weight Bracket for Case, New Holland

Color: Black…99
Weight: 52 lbs each
23kg each

New Holland T-4000 – 6000 – 7000. Weight Bracket for TN- TNA-TL-TS-TT-TSA-TB-TM Series.  Also 10-30-35-40 and 60 Series- Will fit Older Models with front bolster.  Case I.H. Farmall 70-95 Case I.H. Jx & Jxc Series.  Will NOT fit models with Super Steer.  Will hold up to (10) No. LS 101 or 12 # LS100
hardware sold separately

LS 501

Tractor Weight Bracket for New Holland and Case

Color: Black…96
Weight: 52 lbs each
23kg each

Front Weight Bracket for JXU Series. Farmall 85-105U.  Case I.H. Will hold up to (12) No. LS 100 suitcase weights.  New Holland T 5000 Series will hold (12) LS100 or (10) LS 101
hardware sold separately

LS 501-101

LS 501-101 Package

Color: Black…112
Weight: 872 lbs each
Package Pricing!

396kg each
Universal Suitcase weight with LS501 Bracket.

Bracket has flat mounting side.  Package is for 10ea LS 101 Weights and 1ea LS 501 Bracket.  See LS 501 bracket for tractor applications.  Can fit many custom applications.

hardware sold separately

LS 506

Front Tractor Weight Bracket for John Deere

Color: Green…98
Weight: 60 lbs each

Replaces: R117599 and others.

Front Weight Brackets for John Deere 6000, 7000, 8000 and new 6D Series.  Holds up to (10) LS 201 (DEERE R51680), (14) LS 202 (DEERE R58823), or (14) LS 200 (DEERE R127764) Suitcase Weights.

hardware sold separately

LS 507

Front Weight Carrier. CaseIH and others.

Color: Black…93
Weight: 67 lbs each

Replaces: 1342125C2 and 239385A4

Heavy Duty Front Weight Bracket

Will fit all CASE I.H. 7100-7200 Series.
Will hold up to (18) LS 100 Suitcase Weights.

hardware sold separately

LS 508

New Holland Skid Steer Brackets

Color: Black…92
Weight: 14 lbs each

Replaces: 86504860 (LH) and 86504861 (RH)

Fits New Holland Skid Loaders

L-160-170 and 565-665
Each bracket hold
(2) LS 310 Weights

hardware sold separately

LS 509

New Holland skid Steer Brackets

Color: Black…91
Weight: 20 lbs each

Replaces: 87044216 (RH) and 87448329 (LH)

Fits New Holland Skid Loaders

L-175B, 180B-185B and 190B, LT185B
Each bracket hold
(3) LS 310 Weights

hardware sold separately

LS 510

Front Tractor Weight Bracket for John Deere Utility models.

Color: Green…97
Weight: 60 lbs each

Replaces: R70417 AR92425

and others.

Tractor Weight Bracket for John Deere Utility Models 30-40-50-55 and 5000 Series.  Holds up to (8) LS 201 or Deere R51680, (10) LS 202 or Deere R58823, (10) LS 200 or Deere R127764 suitcase weights.

hardware sold separately

LS 510 C

Cast Iron Front Weight Support for John Deere

Color: Green…292
Weight: 120 lbs each
New Cast Iron Weight Support for John Deere

Fits JD 5000 series tractors with 10″ mount hole spacing.  Pin Included.

Holds up to (10) LS 201 (DEERE R51680), (14) LS 202 (DEERE R58823), or (14) LS 200 (DEERE R127764) Suitcase Weights

hardware sold separately

LS 511

Color: Black…90
Weight: 70 lbs each

Weight Bracket for New Holland T-6000 and T-7000 and Case MX Maxxum

Will hold (18) LS 100 Suitcase Weights

hardware sold separately

LS 512

Tractor weight bracket for many Farmall, Workmaster series.

Color: Black…89
Weight: 20 lbs each

Replaces: New Holland 718233006

Weight Bracket for N.H. Workmaster 45-55 and Case I.H Farmall Series A 45-55.

hardware sold separately

LS 513

Tractor weight bracket , John Deere 7000 and up.

Color: Green…108
Weight: 98 lbs each
REF R82549

Replaces: R82549 and others.

Front Weight Bracket for John Deere 7000 and up.  Holds up to (14) LS 201 or  (20) LS 200 or John Deere R127764 Suitcase Weights.

hardware sold separately

LS 514

International Tractor Weight Bracket

Color: Black…109
Weight: 60 lbs each

Fits old style International. Uses LS107 weights.  Call for more information.
hardware sold separately

LS 514-107

IH front weight package.
…110
Weight: 870 lbs each
Package Pricing!

395kg each
Old Style International Package.

8ea LS107 Suitcase weights
1ea LS514 Bracket

hardware sold separately

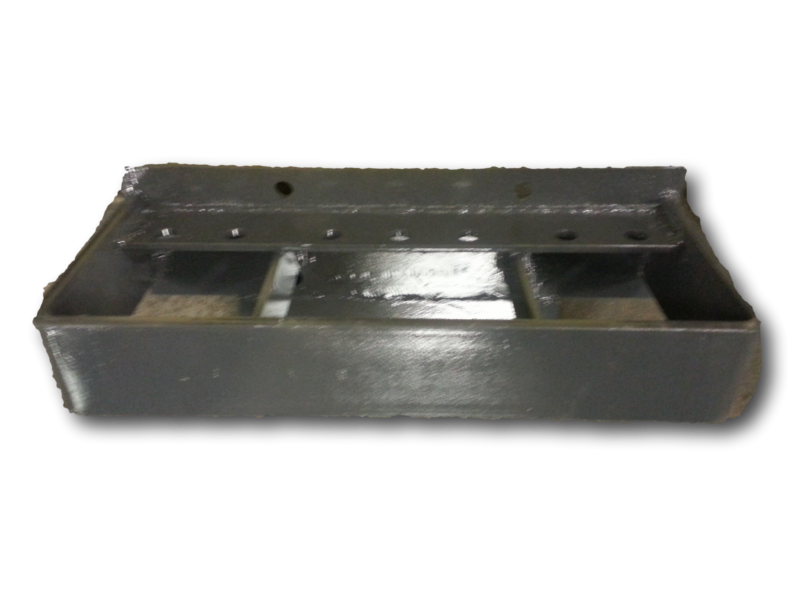

LS 520

Weight Bracket for Kubota

Color: Grey…181
Kubota Style Weight Bracket

Ref M8068 Type
Replaces: M8068

Uses LS400 or LS402 Suitcase Weights or Kubota BL8060 weights.

hardware sold separately

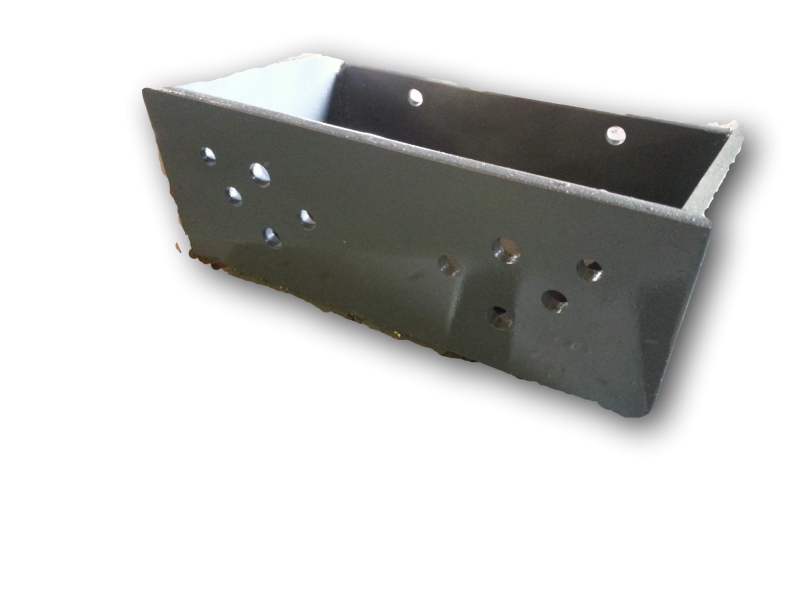

LS 525

Weight Bracket for Kubota Tractors

Color: Grey…180
Kubota Style

Ref BX 8064A Type
Replaces: BX 8064 A

Kubota Style Weight Bracket

B Series
Uses LS 400 Weights or Kubota BL8060 weights.

hardware sold separately

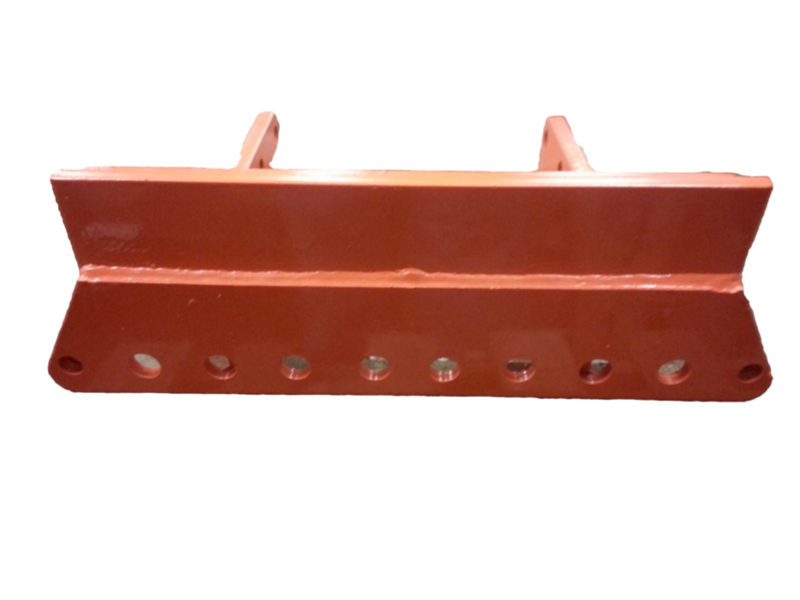

LS 530

Weight Bracket for Kubota Tractor

Color: Orange…183
Kubota Style Weight Bracket

Ref M1059 Type
Replaces: M1059

Kubota Style Weight Bracket uses LS403 Suitcase Weights or Kubota M8071 weights.

hardware sold separately

TF C-10181

TF C-10181 MAGNUM BRACKET

Color: BLACK…359
Weight: 105 lbs each
48 kg each.

Case Magnum Tractors 180 thru 340.  Will hold 10 ea LS103 or TF181 weights.
hardware sold separately

TF C-5112

TF C-5112
…342
Weight: 50 lbs each

23 kg each.
Old Style Maxxum  and MX Tractors.  Will hold 12ea LS100 or 12ea TF 173 weights.
hardware sold separately

TF F-TW10

Ford Weight Bracket

Color: BLACK…360
Weight: 136 lbs each
Ford Weight Bracket

Will Hold 14 TF 813 weights.
Uses  TF 813 Weights.

Fits MFWD 2810, 2910, 3910
Fits 4610 thru 8210 not 4610 S.U.
Fits 5640-8340 and 3230, 3430,3930, 4630
Fits TW5, TW15 and 8530-8630

hardware sold separately
